These units are the result of Italian manufacturer’s considerable experience in the field of industrial suction systems and the construction of vacuum pumps.
They can be used in any environment where cleaning or the transport of considerable quantities of dusty, granular, liquid or muddy material in incorporated containers or in silos or forkable pre-separators of 1 or more m3 is required

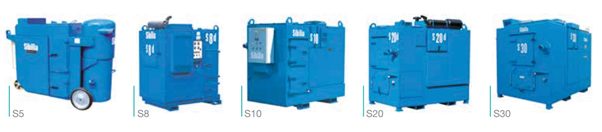

| S5 | S8 | S8-40 | S10 | S10-45 | S20 | S30 | |
| Electrical Power kW | 15 | 22 | 30 | 37 | 45 | 55 | 90 |
| Diesel Power kW | - | 32,5 | 44 | 66 | - | 97 | 127 |
| Air Flow m3/h | 800 | 1300 | 1300 | 2000 | 2200 | 3200 | 4000 |
| Vacuum max DaPa | 27000 | 120000 | 120000 | 160000 | 160000 | 260000 | 260000 |
| Main Filter cm2 | 17400 | 18000 | 18000 | 95000 | 95000 | 130000 | 130000 |
| Safety Filter cm2 | 17400 | 18000 | 18000 | 95000 | 95000 | 130000 | 130000 |
Truck Mounted Vacuum Cleaner

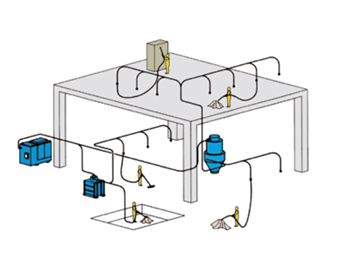

Advantages The creation of a centralised suction system certainly has many advantages:
- Recovering materials within the production cycle.
- Transferring the materials to a predefined collection point to then dispose of them in Big Bags or put them back into the production cycle.
- Keeping the production lines clean and efficient, thereby reducing maintenance costs.
- Improving the quality of the environment in your company.
- Improving the safety of the work environment, reducing the risk of accidents
Powerful, compact suction systems which, used with our filter hoppers, create high performance centralised systems, even with extensive piping. They can be
used in all industrial fields.
| DRAGONFLY 25 | DRAGONFLY 40 | |
| Vacuum max | 5000 DaPa | 8000 |
| Air flow | 1100 m3/h | 2130 m3/h |
| Electrical Power | 18,5 kW | 45 kW |
| Diesel Power | 23,2 kW | 55,4 kW |
| Pump | three lobe pump | 950 lt. |
| Container | 500 lt. | DN 300 |
| Bottom flange | DN 300 | 100/120 DNi |
| Flex hose | 80/100 DNi | 80/100 DNi |
| Pocket main filter | 72000 cm2 | 162000 cm2 |
| Safety filter | 18000 cm2 | 95000 cm2 |
| Dimensions mm | 3396x1850x2258 H | 4455x2160x2310 H |
| Diesel Weight | 1980 Kg | 3420 Kg |
| Electrical Weight | 1650 Kg | 2930 Kg |
We provide overhead travelling cranes in accordance with FEM norms with the world’s leading production technology. Our company uses standard products in its product range, provides special solutions to its customers and also provides a maximum return on investment.
Truck Mounted Vacuum Cleaner
We offer containers of various types holding from 3 to 12m³ fitted with a highly efficient cyclone or filter positioned internally: in special cases both these solutions can be adopted at the same time
Road Sweepers

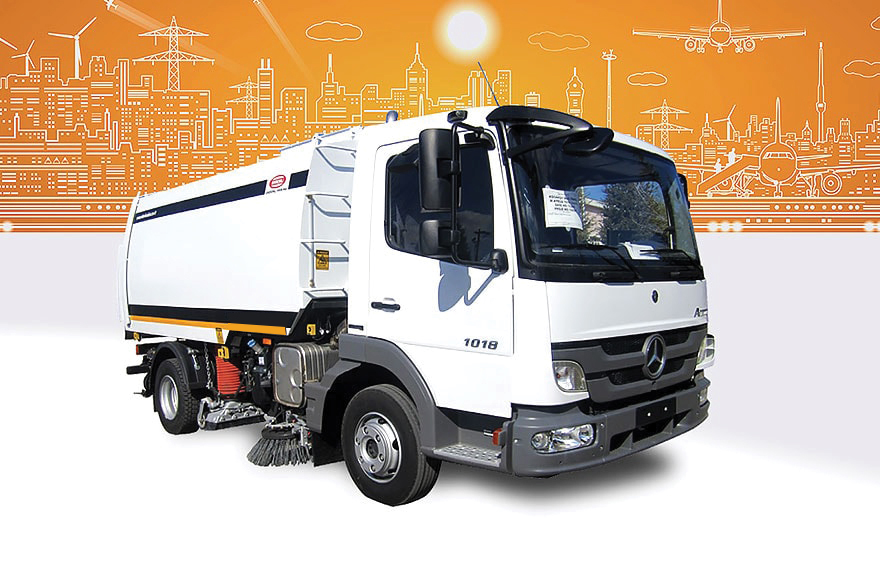

1-Truck Mounted Vacuum Road Sweepers
| Tank Volume | 7-8 m3 |
| Water Tank Volume | 1700 Liters |
Road Sweepers

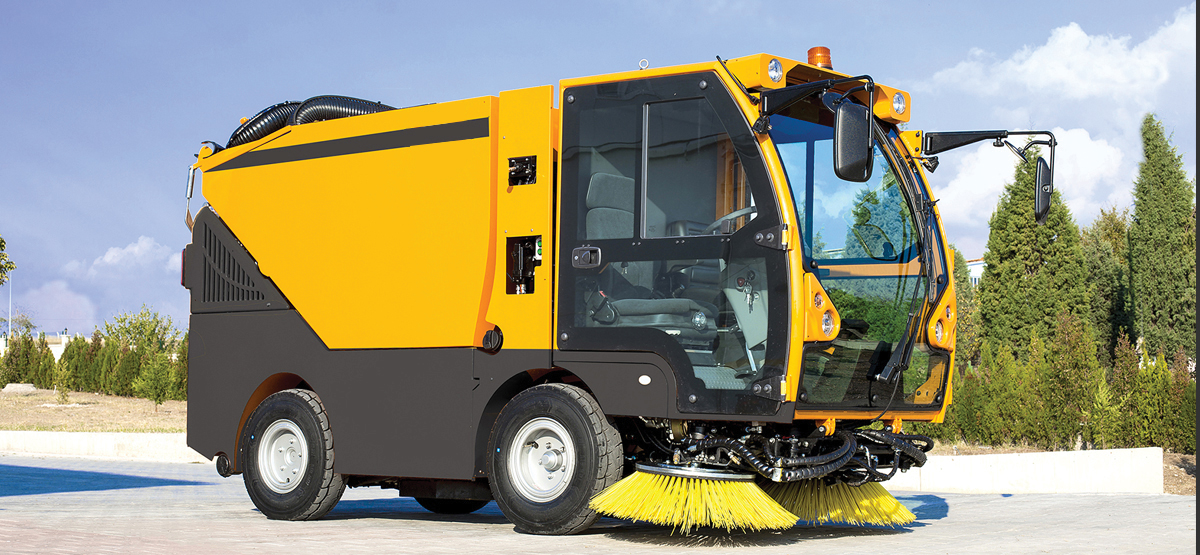

2-Compact Type Vacuum Road Sweepers
| Wander Hose | 5 m (nominal) |
| Steering Wheel | Hydraulic |
| Heater | Tilting Cabin |
| Cabin Roof Ventilation | Camera Monitor System |
| Adjustable Hydraulic Steering Wheel Unit | Ergonomic Seat |
| Independent Suspension System | Vehicle Front Lifting System |
| Powerful Vacuum System | Discharging Ability Into Garbage Container or Garbage Collecting Truck |
| 3rd brush – Optional | Disc Brake |
